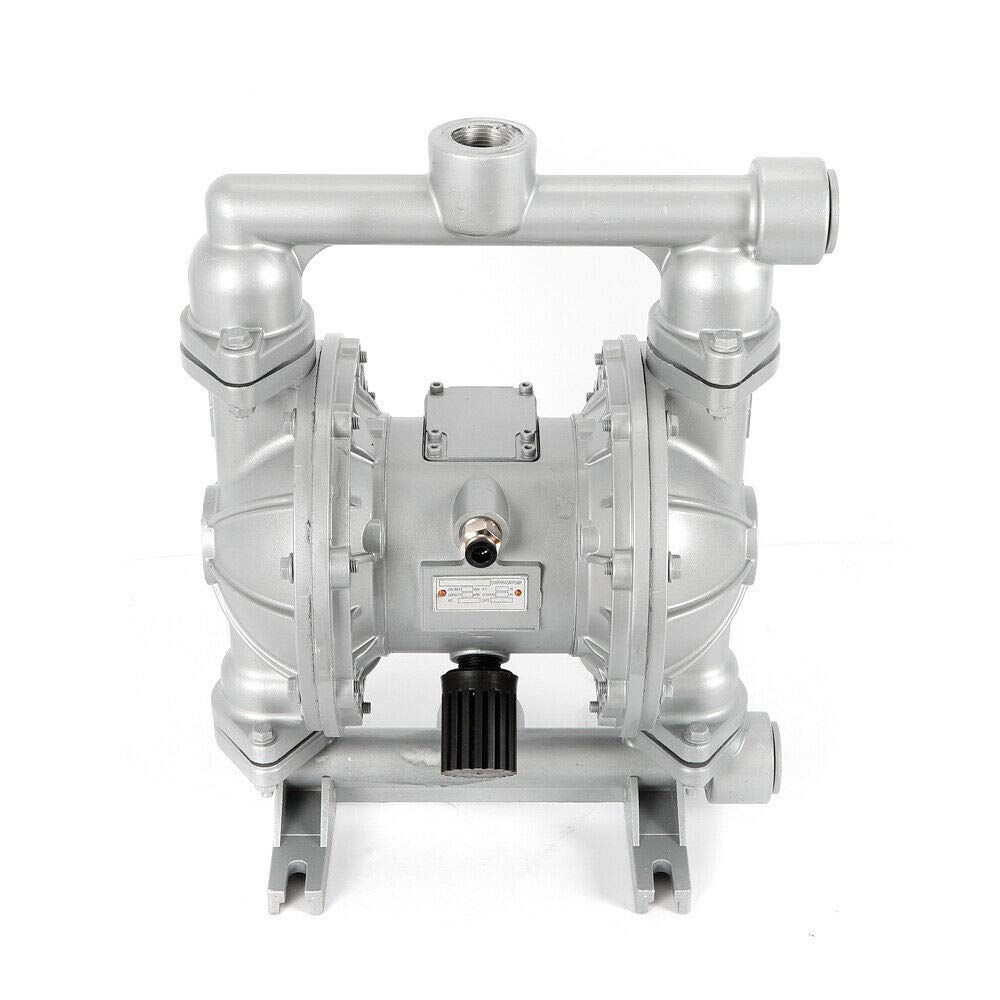

QBK-25L Air-Operated Double Diaphragm Pump - 1/2 Inch Pneumatic Inlet, 115 PSI - Ideal for Chemical Transfer, Wastewater Treatment & Industrial Applications

Product Description

Warning! Can not use for corrosive liquid. A diaphragm pump (also known as a Membrane pump) is a positive displacement pump that uses a combination of the reciprocating action of a rubber, thermoplastic or teflon diaphragm and suitable valves on either side of the diaphragm (check valve, butterfly valves, flap valves, or any other form of shut-off valves) to pump a fluid. The listing is about 24 GPM Air-Operated Double Diaphragm Pump with 1 Inch Inlet And Outlet. This powerful air-operated double diaphragm pump operates from 29 to 115 PSI. Features a 1in. inlet and 1in. outlet capable of pumping up to 24 gallons/min at temperatures up to 80 degrees F. Specifications Product: Diaphragm pump Type: Air-operated double diaphragm Model: QBK-25L Inlet Port: 1 inch (25 mm) Outlet Port: 1 inch (25 mm) Air Inlet Size: NPT 1/2 inch (12.7 mm) Average Air Consumption: 9 CFM Max Flow rate: 6 m3/h (24 GPM) Suction: 0-5 m (0-16.4 ft) Max Suspended Solids: 3 mm (1/8 inch) Max Head: 69 m (226.38 ft) Max. PSI: 115 Operating PSI: 29-115 Max Fluid Temp.: 80 ℉ Product Dimension: 35 x 23 x 46 cm (14 x 9 x 18 inch) Package Size: 38 x 28 x 49 cm (14.96 x 11.02 x 19.29 inch) Gross Weight: 16 kg (35.27 lbs) Application Perfect for use with water. Ideal for use with low viscosity petroleum fluids including diesel, kerosene, motor oil and some waste oil.
