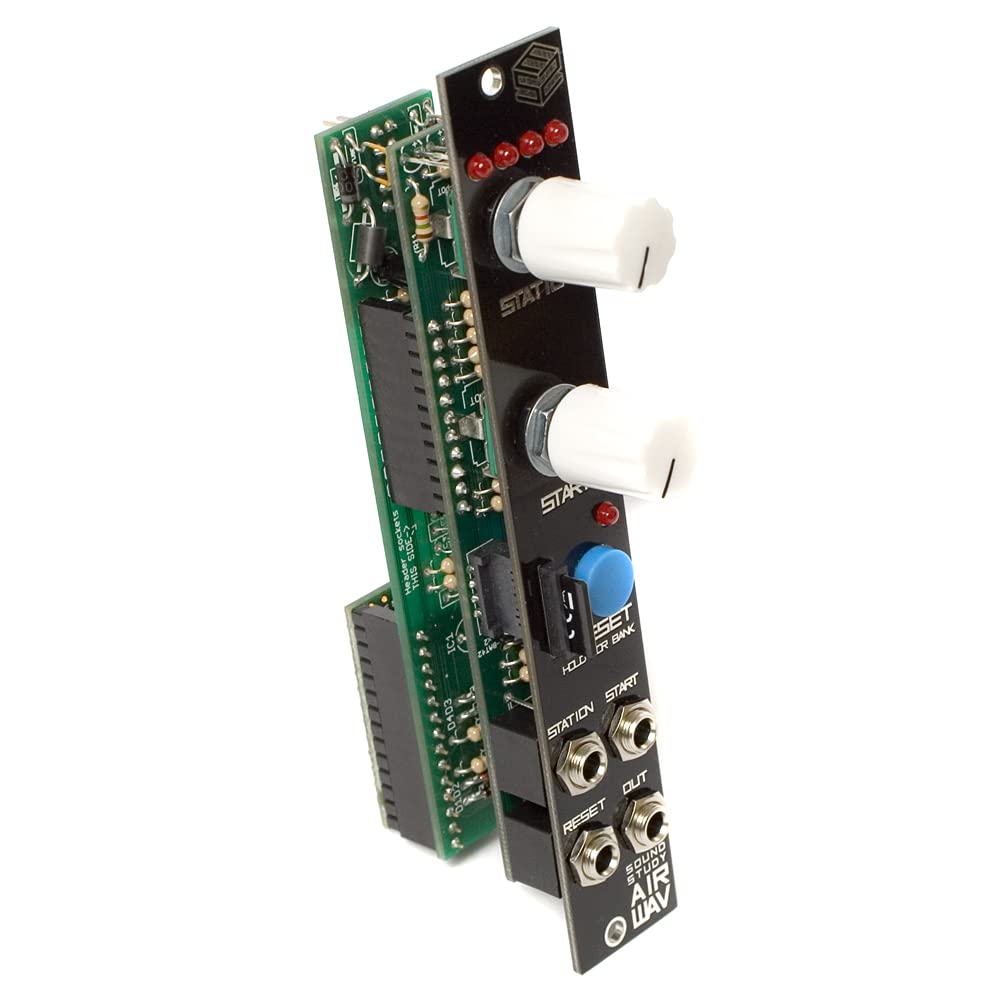

Sound Study Modular Air Wav PCB & Panel - DIY Synth Module for Electronic Music Production | Perfect for Home Studios & Live Performances

Product Description

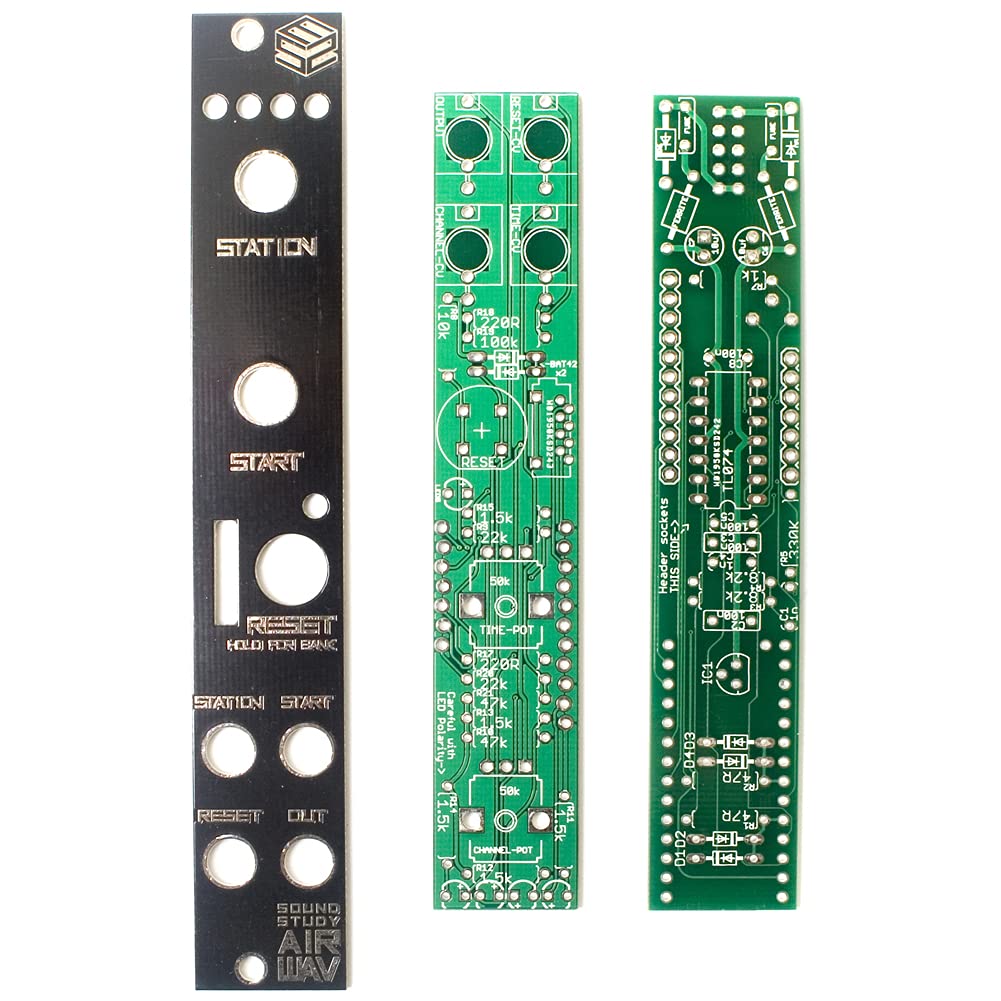

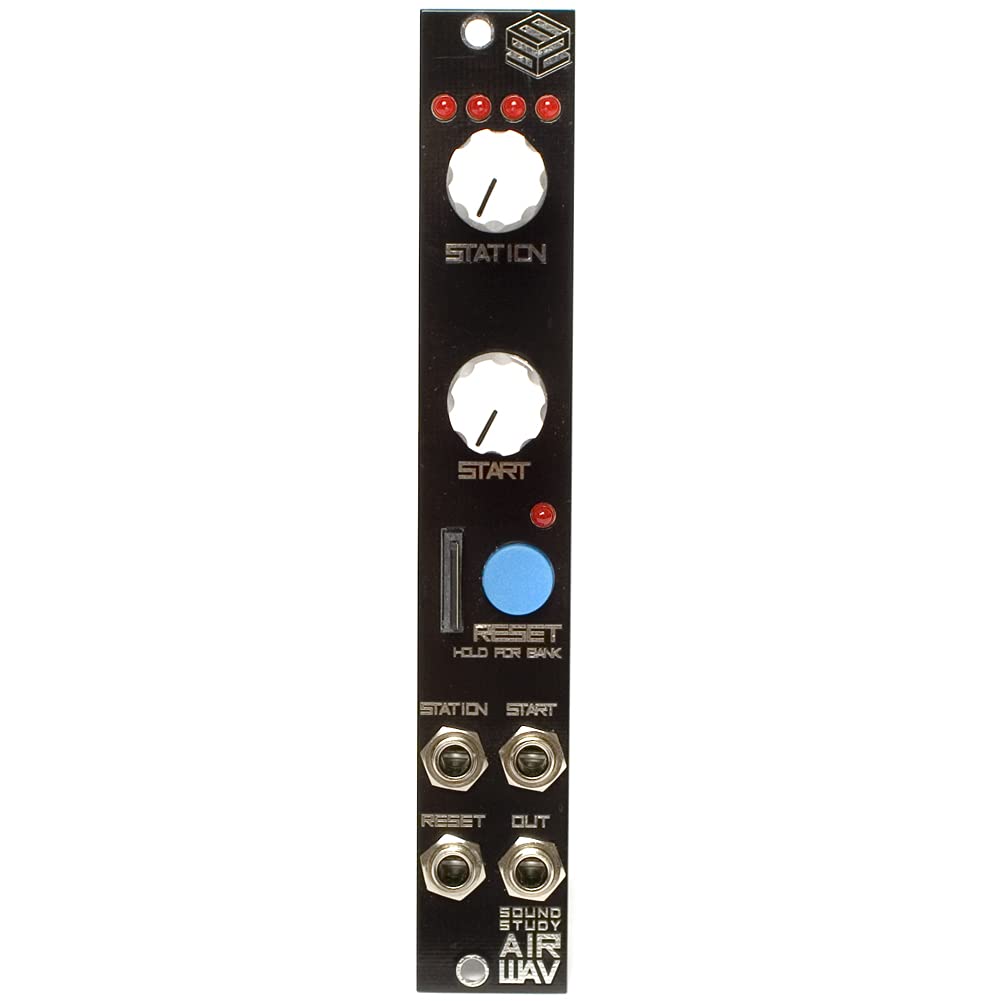

Attention: This only comes with the PCBs and the optional panel! Does not come with a Teensy or any other items.AirWAV is a virtual radio module, so it behaves a bit like a radio. It is designed to be a source of unexpected audio, not a drum loop player or a sample mangler.Like a radio, this module works on a series of banks and stations. Each of the 16 banks can contain many different stations. Each station is .raw audio file stored in a bank directory on the SD card. Choose a bank by pressing and holding the RESET switch. Choose a station by turning the STATION knob or plugging a voltage into the STATION jack.Please note: Micro SD card not includedFeatures:CV control over which audio file is being playedCV control over where the audio file starts when 'reset' receives a trigger.CV accepts 0 to +5, with over voltage and negative voltage protectionCV inputs are additive to the potsManual audio file select, start and reset.16 banks of audio files (max each of 75 files)300 files max totalOutput volume trimmerLEDs act as vu meter as well as bank selection indicator4hp wide40mm / 1.58in deepCurrent Draw:+12 @ 80mA-12 @ 10mA+5 @ 0mAInformation for re-use, adaptations or derivative worksSound Study Modular is trademarked, and should not be used on any of works you create from these files.We ask that if you want to re-use all or part of the files provided on github that you change the name of the product to something else
