30MPA 4500PSI High Pressure Electric Air Compressor Pump - 110V PCP Air Rifle Inflator for Paintball Tanks, Scuba Diving & Pneumatic Tools - Fast Refill Station for Airguns and Sports Equipment

Product Description

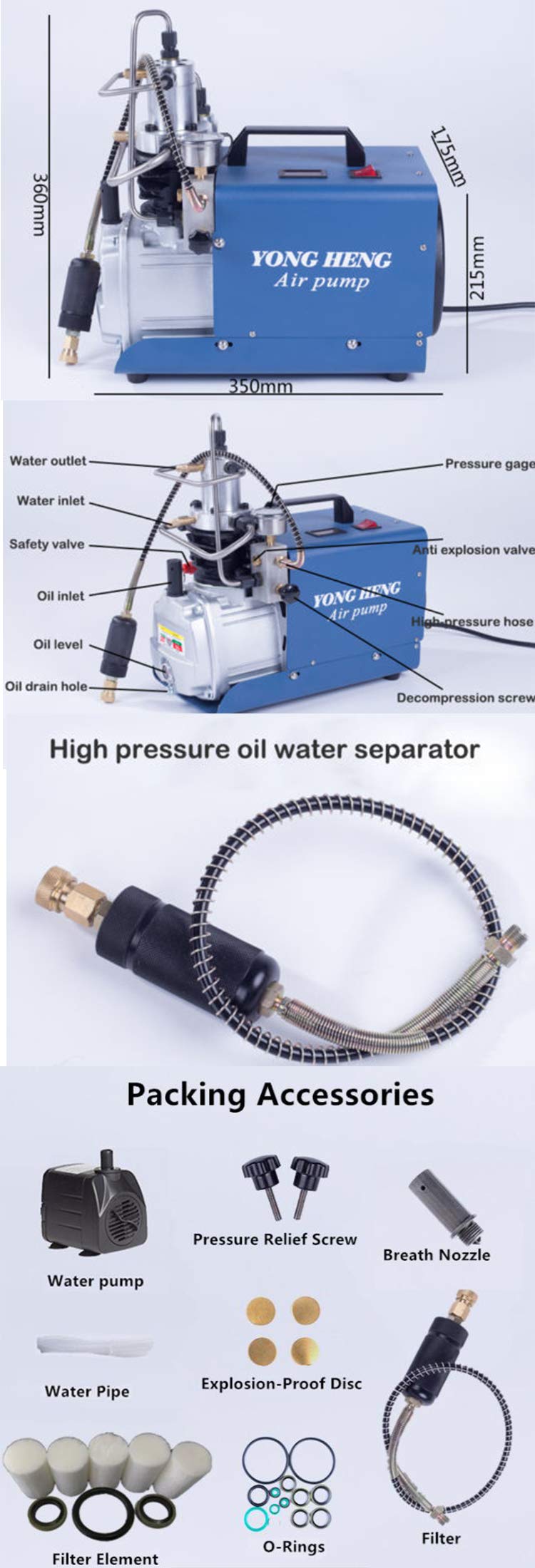

Specifications: Power supply:110V,60Hz Power: 1.8KW Rotating speed:2800r/min Working pressure:0-30Mpa/0-300bar/0-4500psi Lubricating system:splash type Compress mode:two-stage compression Cooling mode:water cooling Weight:15.8KG Size: 300*215*350cm Noise:85db Operation Instruction: 1、Take out the product; install the hose at the air outlet.(Note: gasket is needed, or air leakage might exist). 2、Connect 2 cold water pipes and connect them to the water pump. Note: the lower pipe connected to the water pump is water inlet; sinking pump is used in this product. The water pump should be immersed in water for using. 3、Install the pressure relief valve screw; pressure relief valve screw is installed at the pressure relief hole under the hose. The blow-down valve is installed at the drain outlet of the first air chamber block. 4、Immerse the water pump in water and switch on the power. 5、Connect the container need to be inflated, make sure the connection is correct. 6、Screw up the screws of the blow-down valve and pressure relief valve. 7、Switch on the power ant the machine operates. (Note: when the machine is operating, the water must operate correspondingly, or the product might be damaged due to overheated, personal harm may even occur) . 8、After the inflation is completed, screw of the pressure relief valve should be firstly loosen, then the power is to be switched off, by doing so, high pressure air backlash caused due to sudden failure of power supply would be avoided, which could lengthen lifetime of the product, as well as discharge high pressure air in the machine. Packing List: 1X main machine 1x water pump 2x pressure relief screw 1x breath nozzle 1x water pipe 4x explosion-proof disc 5x filter element 1x set of O-rings 1x fl
