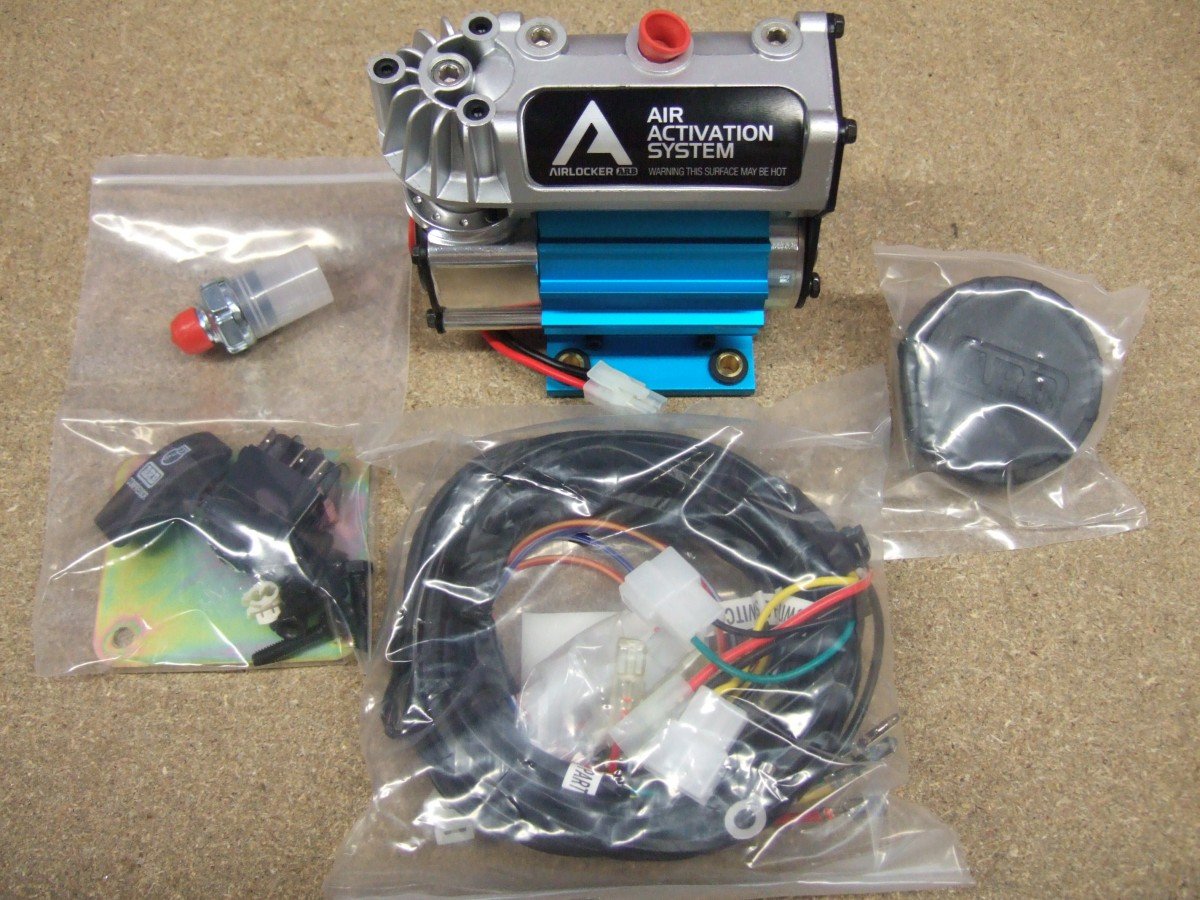

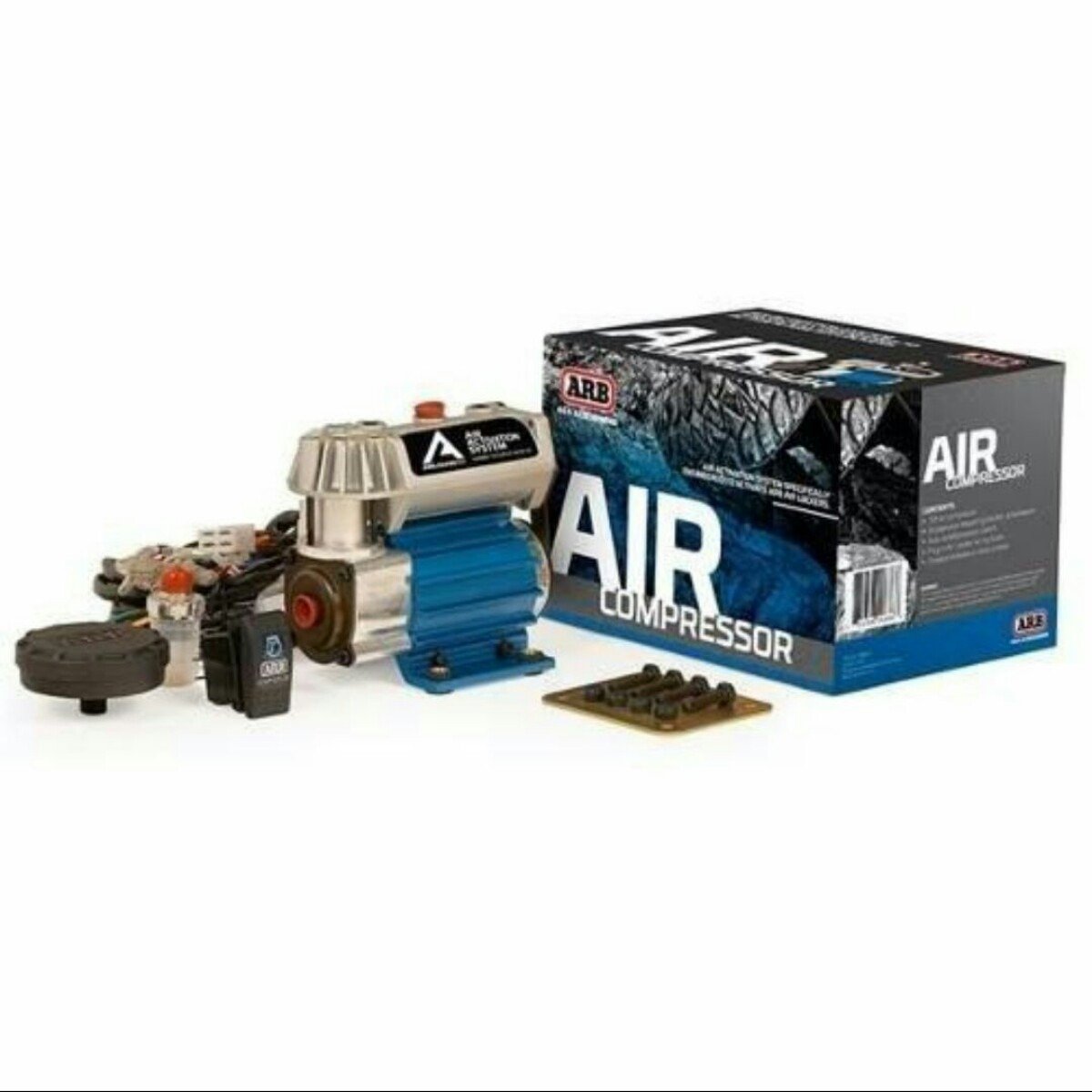

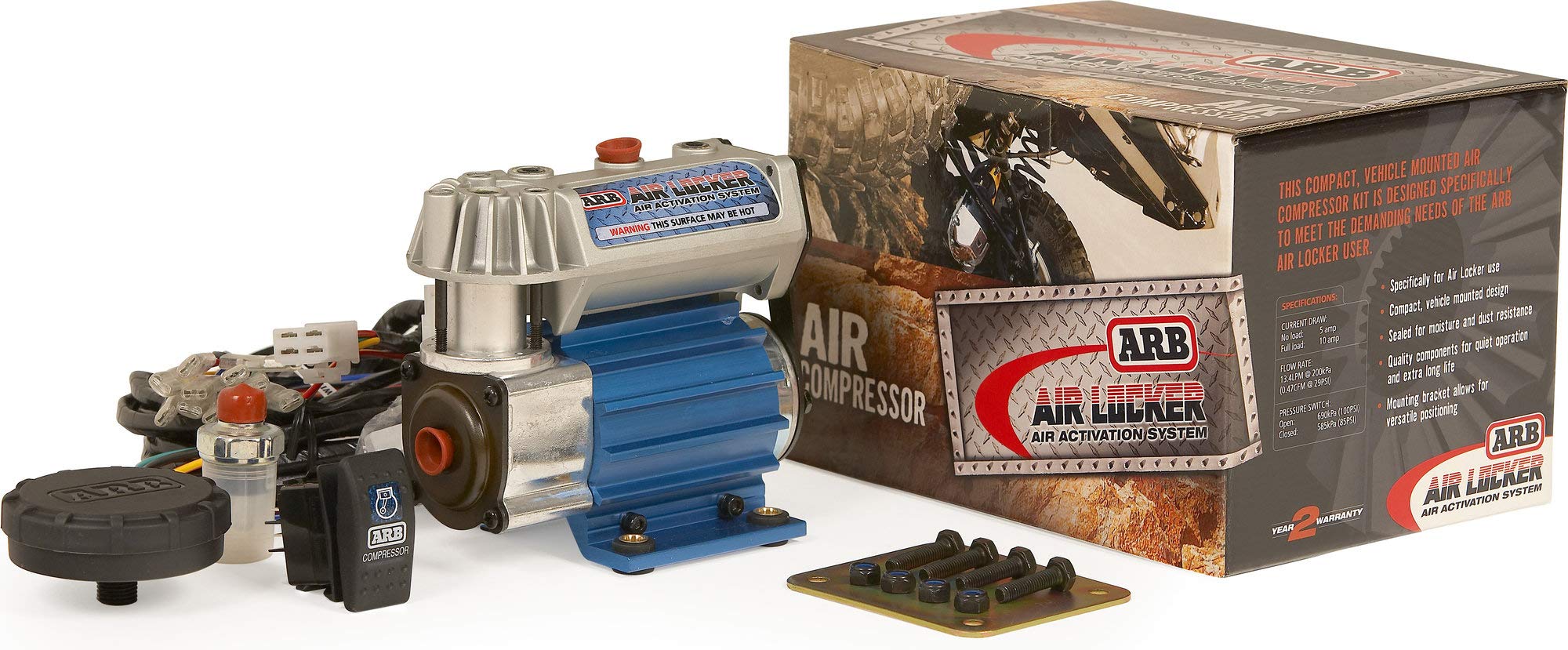

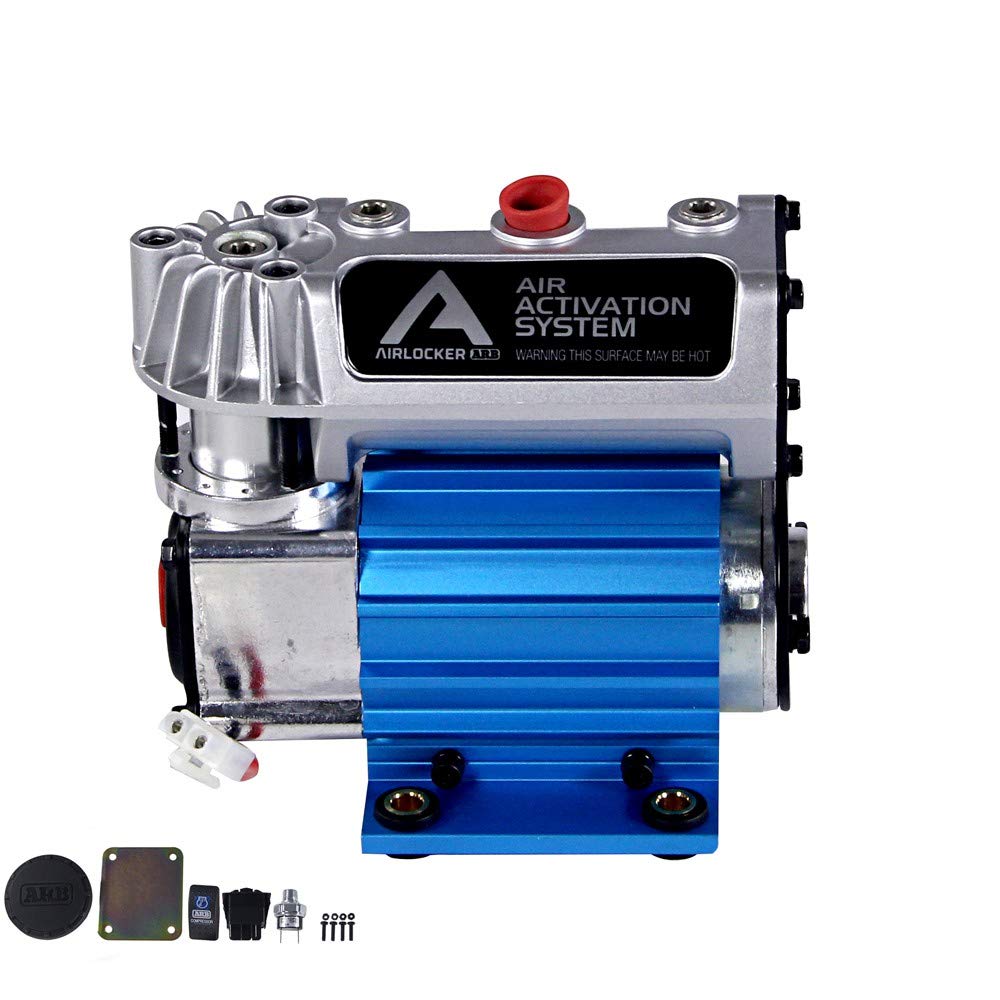

ARB CKSA12 Air Compressor Compact 12V Single On-Board High Performance 12V DC Voltage: 12V Designed Exclusively for ARB Air Lockers Locking Differentials / Hard anodized cylinder bores for reduced friction ARB CKSA12 Compact Air Compressor Single On-Board High Performance 12 V DC Designed specifically for Air Locker activation and sealed for moisture and dust resistance, this compact onboard compressor comes with a full wiring loom for simplified installation and plug-in connectivity to Air Locker control solenoids. Previous page COMPACT & LIGHTWEIGHT If you’re in the market for a lightweight, compact on-board air compressor system, then have a look at this unit from ARB. This is ARB’s Compact On-Board Air Compressor Kit. simple to use and install ABOUT CKSA12 - Keep it simple and functional This compressor is designed to activate ARB Air Differential Lockers, anodized mounting bracket dissipates motor heat and allows the compressor to be repositioned 180 degrees. CKSA12 TECH SPECS Voltage: 12 V Current Draw no Load: 5.5A Air Flow @ 0 kPa: 27.7 l/min Air Flow @ 0 psi: 0.98 CFM HIGH PERFORMANCE Permanently mounted this compressor is installed into your truck, includes a full wiring loom with air locker solenoid plug-in contacts, mounting hardware with reinforcing bracket and isolating switch HIGH-END MATERIALS - Protection above all Constructed of lightweight, high-strength engineering-grade materials, it incorporates quality components for quiet operation and extended durability. Teflon-impregnated carbon fiber piston seals. BOX INCLUDES Air Compressor, Mounting Bracket, Air Filter, Pressure Switch, On/Off Switch, and Wire Harness. Air filter: assembly for cleaner, cooler air supply, and versatile waterproof air intake positioning. Next page CKSA12 OVERVIEW At less than half the weight of other compressors, this system is ideal for competition vehicles, rock crawlers, or any other vehicle where a compact design is needed. The compressor features fully sealed components, a pressure switch-controlled air manifold system and a hard anodized cylinder bore. AIR COMPRESSOR MOUNTING BRACKET - PART N° 3523010 Mounting compressors in modern-day vehicles becomes more of a challenge because engine bays in today’s vehicles don’t allow much room for added accessories. To address this, ARB has engineered, a reliable, quality bracket system to properly integrate your ARB Compressor into select vehicles. ABOUT THE BOX The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. COMPRESSOR DETAILS 1 2 3 4 5 6 Voltage 12 Volts Current Draw No-Load 5A / Load 6.5A Air Flow 25.0L/min @ 0kPa [0.88CFM @ 0psi] / 13.4L/min @ 200kPa [0.47CFM @ Total Weight 2.1kg [4.6lbs] Size e 122mm x 162mm x 188mm [4.8” x 6.4” x 3.5”] Manifold Port 1 1 /4” npt [Pressure Switch] / 1 /8” bspt [Solenoid nipple] Pressure Switch Open 690kPa [100psi] / Closed 490kPa [70psi]
This compressor is designed to activate ARB air differential lockers.
Anodized mounting bracket dissipates motor heat and allows compressor to be repositioned 180 degrees
Relocatable air filter assembly for cleaner, cooler air supply and versatile waterproof air intake positioning
Teflon impregnated carbon fiber piston seals for maximum trouble free life
Constructed entirely of lightweight, high strength engineering grade materials. Hard anodized cylinder bores for reduced friction
I purchased this compressor to mount under the hood of my Chevy Colorado. I ordered the compressor and was surprised to have it the next day. I had used the free shipping that stated 5-8 days. I was very surprised. I opened the box to find the compressor and parts to be in excellent condition. The box contained everything needed for installation. It even had ring terminals and connectors to wire the harness to the battery. I was very happy with the wiring harness as well. The harness that is supplied with the compressor is designed for lockers, but I am using this compressor for tire fills. The harness was labeled very well and instructions were clear. I had no trouble with the wiring harness. The harness is plug and play. ARB even leaves one plug disconnected so only a small hole has to be drilled to get the switch to the cab area. I simply taped off the wires that I was not using. The wiring had a nice looking switch that is designed to be recessed in a small cut out. I found the switch to be good. The location I mounted the compressor was very tight, but the mount is made to pivot. I was unaware that the compressor body and manifold tube can also be rotated to facilitate various mounting locations. The compressor itself was heavier that I expected, but that was great. The compressor feels well made. I mounted the compressor and made the appropriate wiring connections under the hood. I actually mounted the switch under the hood as well. I used a small plastic gang box used in home wiring and used a Dremel Tool to route out a hole for the switch. I then used a metal plate to cover the box.I was then ready to use the compressor for the first time. I hit the switch and the compressor fired right up. The compressor only ran for about two seconds and shut down. The compressor comes with a pressure switch that shuts down the unit at around 90-100psi. The manifold tube is very small and it gets to that pressure very quick. The manifold tube also has a built in pressure safety relief valve just in case the pressure switch fails. I am not sure what pressure is required to permit the safety valve to operate.I had to source my own fittings to use the compressor as a tire fill unit. I did not purchase the kit offered by ARB because I can build it cheaper myself. I spent an additional $15.00 to make a manifold for my tire fill kit. I had to buy several pieces due to my mounting location under the hood. I also suggest to anyone that purchases the ARB tire fill kit to buy some Teflon tape. I completed the procedure and was ready to fill a tire. It should be noted that I already had 50 feet of 3/8 air hose and fitting to use the compressor. I wanted enough hose to reach from the engine bay to the tires on my travel trailer without uncoupling the trailer.I had been carrying a portable air tank in my truck that holds 120 psi. I decided to test the compressor by filling it up. I turned on the switch and watched the hose fill with air. The compressor then promptly shut off as designed. I filled my air tank from approx 40 psi to 90psi in approx 1 1/2 to 2 minutes. The compressor stopped filling at 90 psi. I was still impressed at the speed given the size of the compressor. I filled a car tire from 10 psi to 32 psi the next day and was equally impressed at the compressor. I think it was a wise investment and would buy it again if I had to go back.My installation took my friend and I two hours to complete. I had a small area to work with and had to "build" some tools to install some small screws in a tight place. I think my installation time was long, but I had a unique mounting location. Anyone with basic skills could install this compressor easily. I needed to drill three holes. The mounting plate has four holes, but I didn't use one due to mounting location restrictions.This is a good compressor and I hope to use it for many years. Good luck.
