SKU:51566331

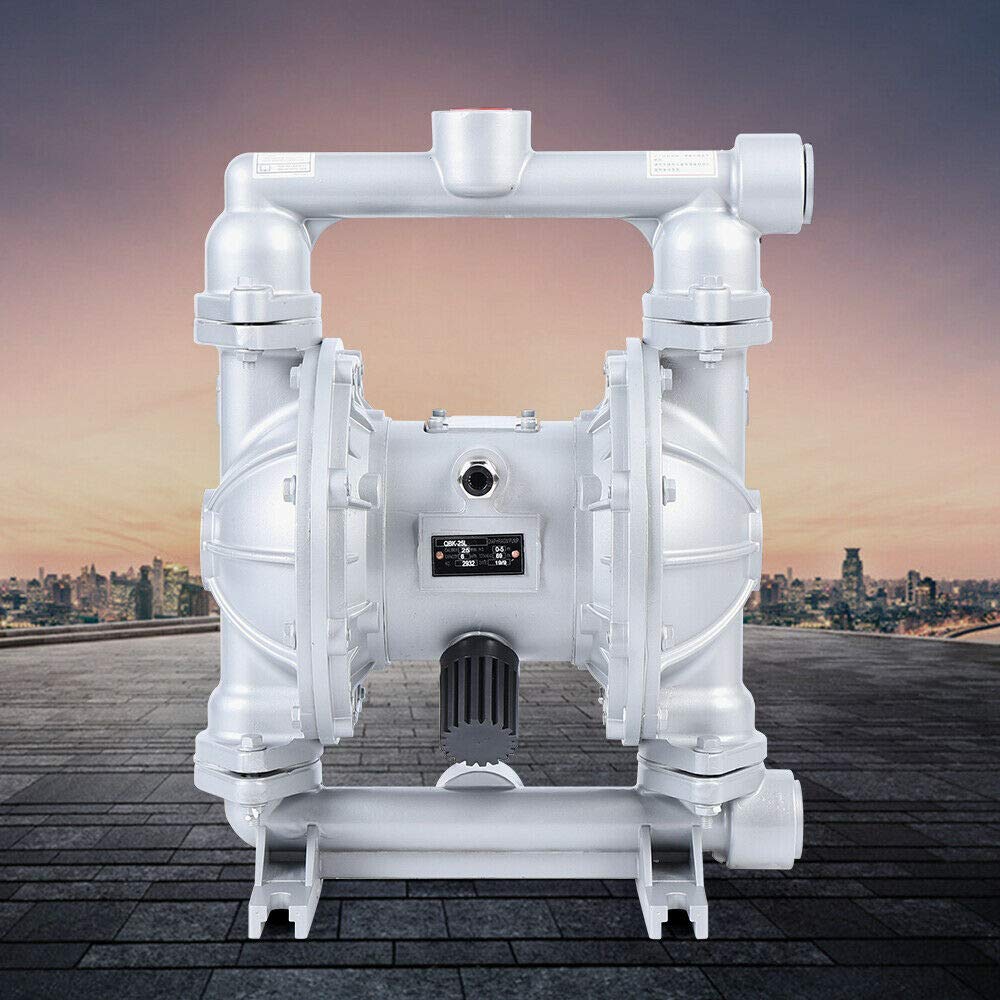

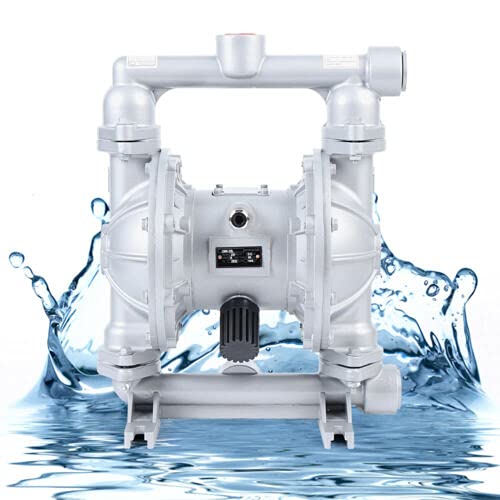

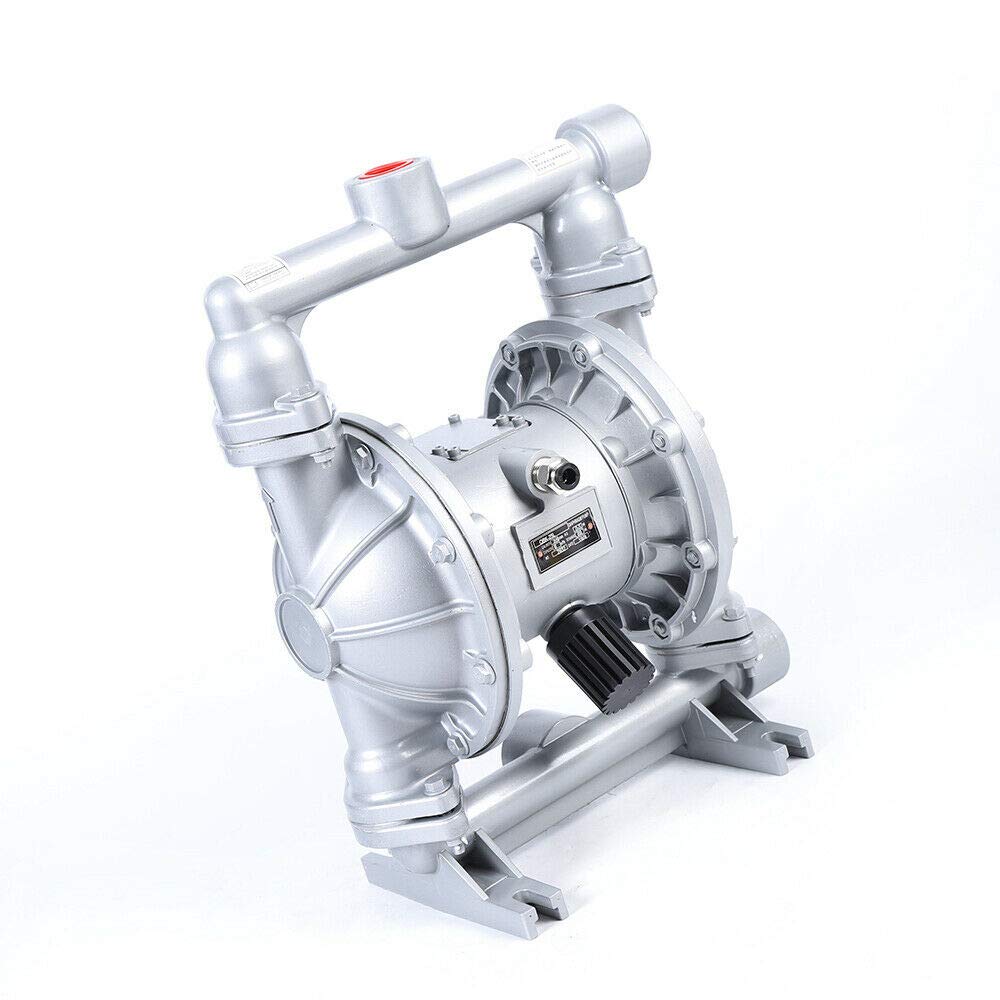

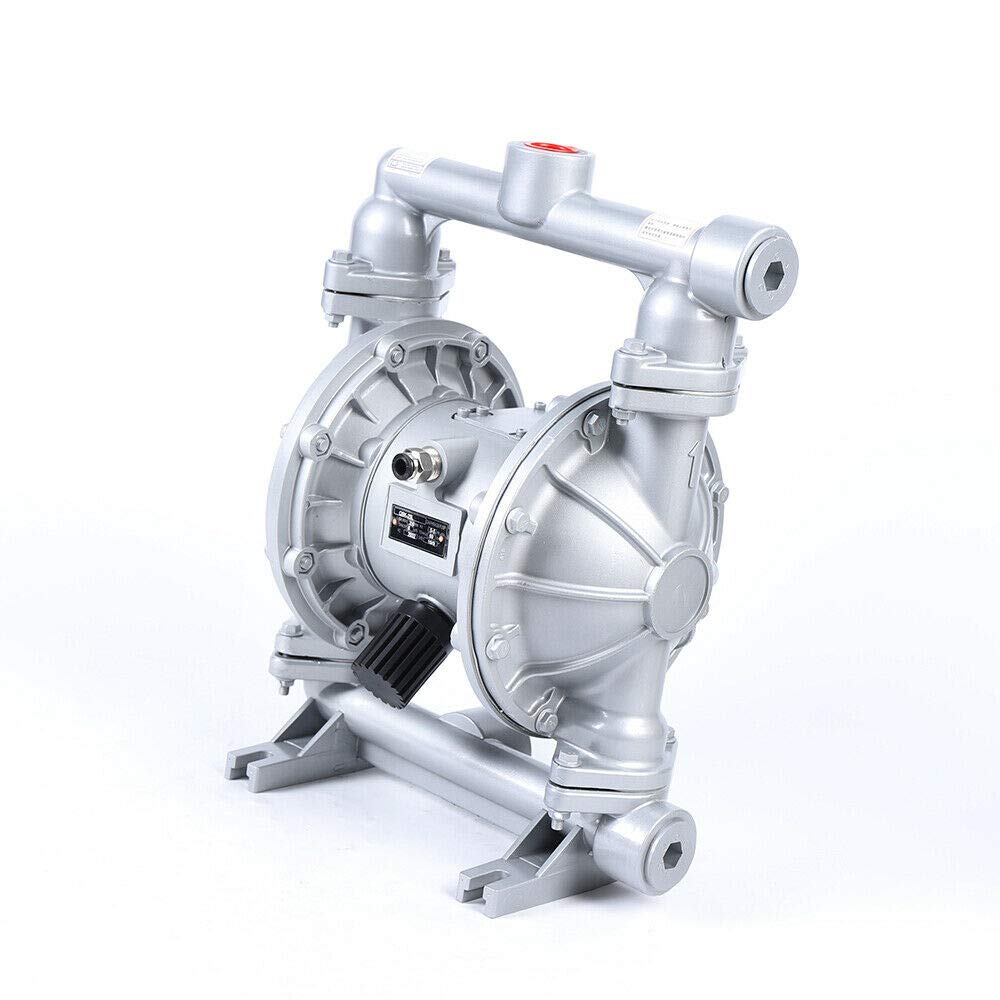

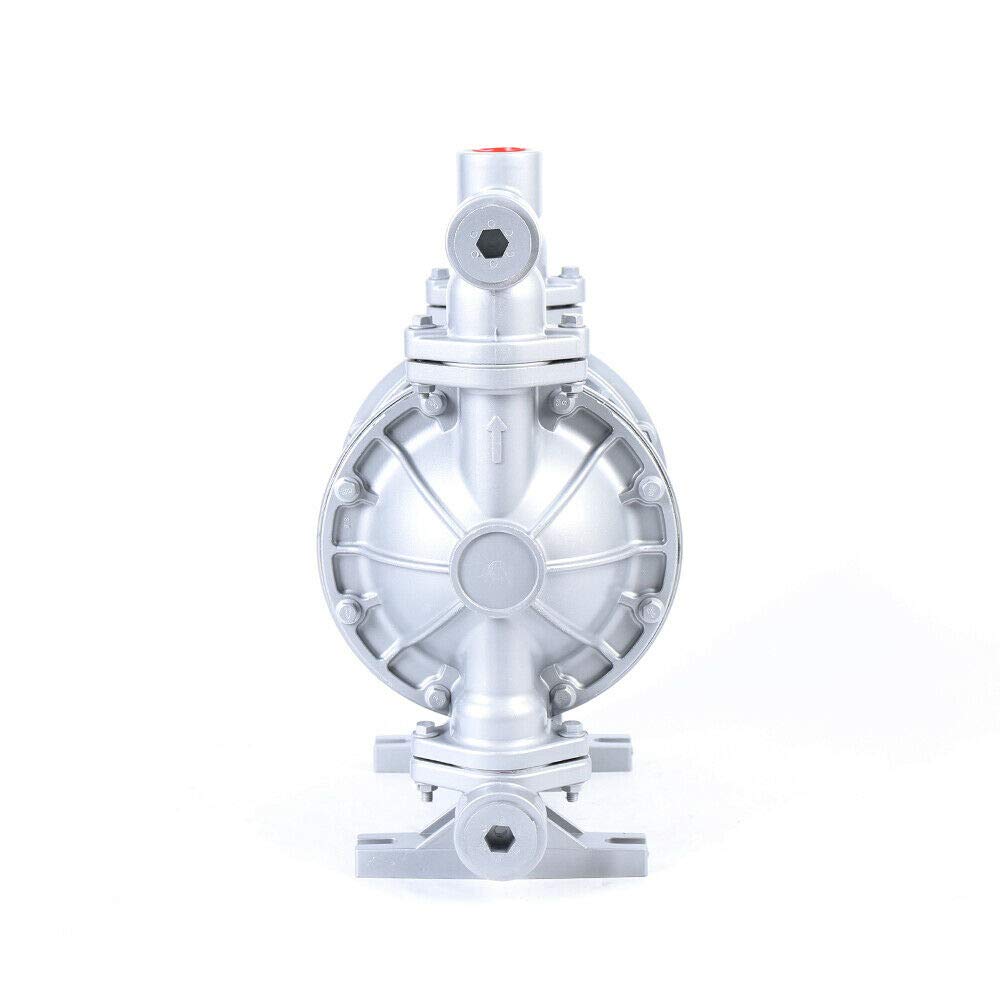

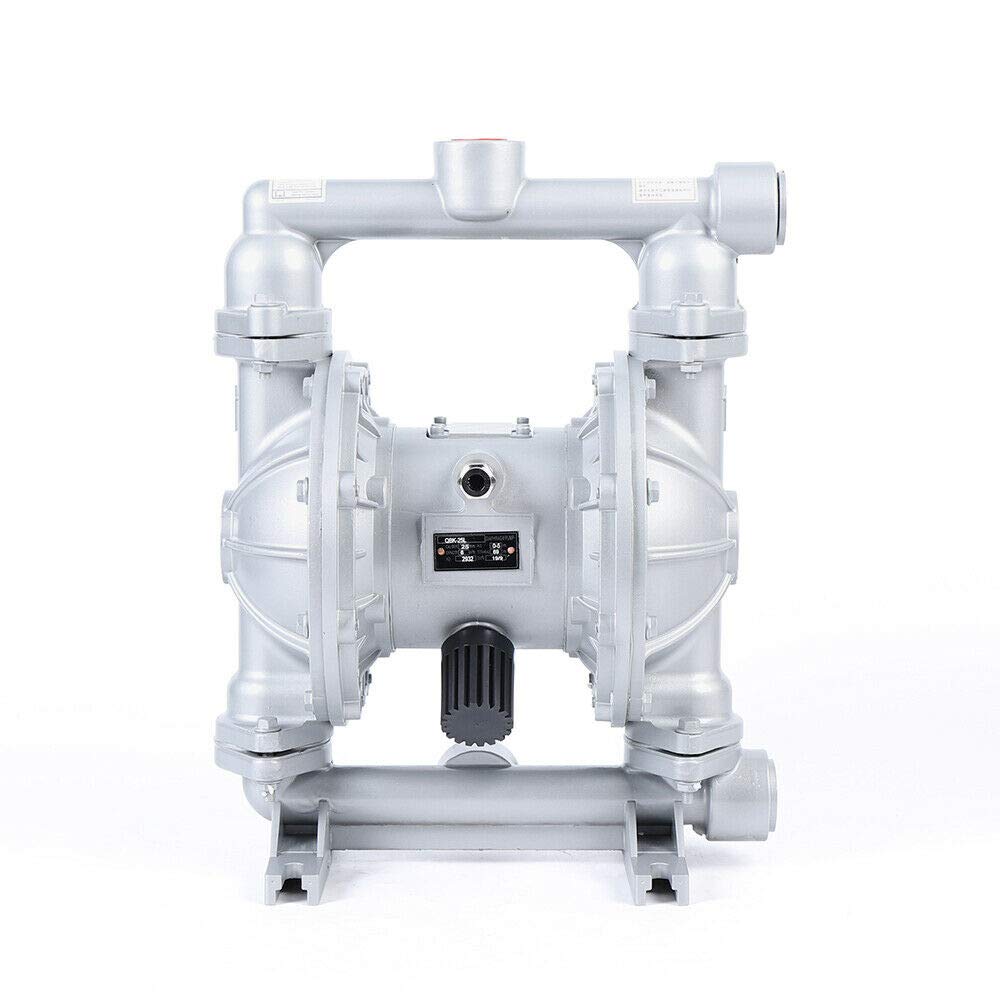

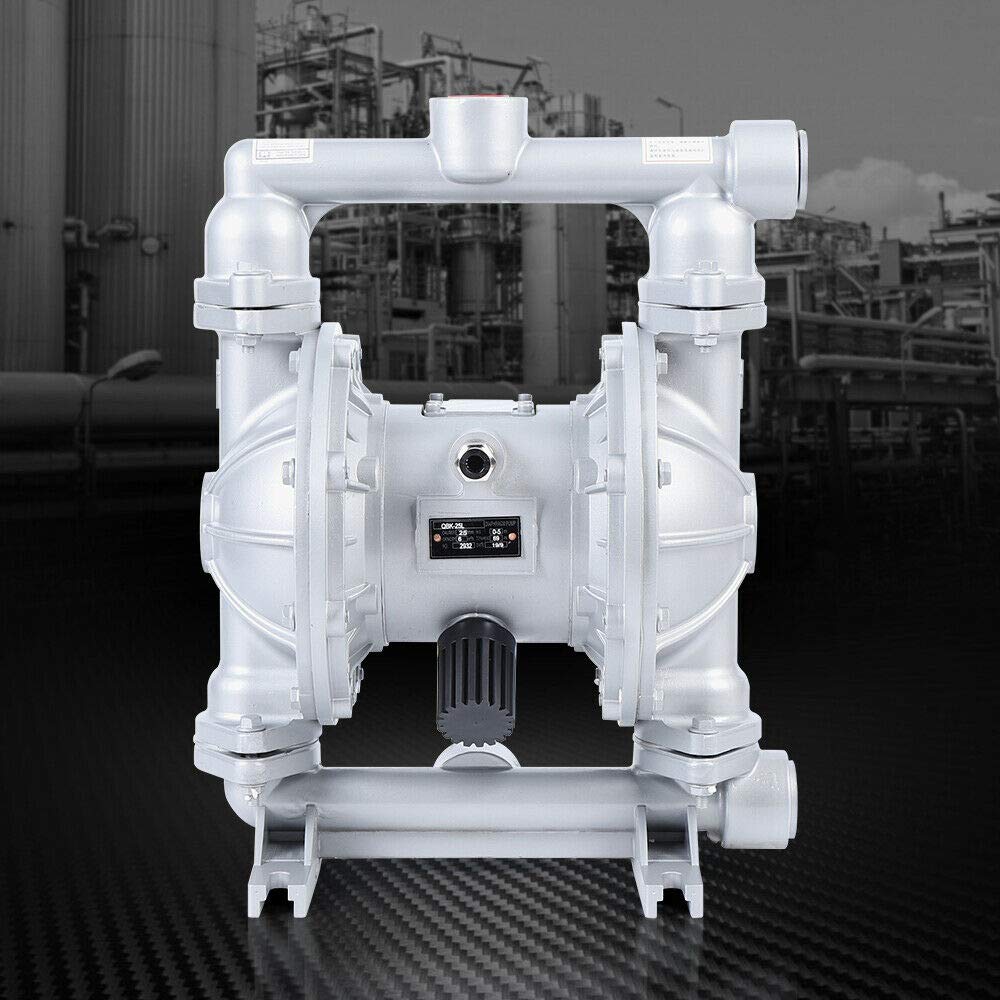

The listing is about 24 GPM Air-Operated Double Diaphragm Pump with 1 Inch Inlet And Outlet. This powerful air-operated double diaphragm pump operates from 29 to 115 PSI. Features a 1in. inlet and 1in. outlet capable of pumping up to 24 gallons/min at temperatures up to 80 degrees F. FeatureAir-operated double diaphragm pumpWith 1 inch inlet and outlet1/2 Inch air inlet1/8 Inch max diameter suspended solidsPerfect for use with waterIdeal for use with low viscosity petroleum fluidsSolid constructionTwo years warrantySpecificationsProduct: Diaphragm pumpType: Air-operated double diaphragmModel: QBK-25LInlet Port: 1 inch (25 mm)Outlet Port: 1 inch (25 mm)Air Inlet Size: NPT 1/2 inch (12.7 mm)Average Air Consumption: 9 CFMMax Flow rate: 6 m3/h (24 GPM)Suction: 0-5 m (0-16.4 ft)Max Suspended Solids: 3 mm (1/8 inch)Max Head: 69 m (226.38 ft)Max. PSI: 115Operating PSI: 29-115Max Fluid Temp.: 80 ℉Product Dimension: 35 x 23 x 46 cm (14 x 9 x 18 inch)Package Size: 38 x 28 x 49 cm (14.96 x 11.02 x 19.29 inch)Gross Weight: 16 kg (35.27 lbs)ApplicationPerfect for use with water. Ideal for use with low viscosity petroleum fluids including diesel, kerosene, motor oil and some waste oil.Working PrincipleIn the pump two symmetrical working chamber each equipped with a diaphragm, the center link will be integrated into one. Compressed air from the pump inlet into the valve, through the valve body to introduce compressed air into one of the chamber to promote movement of the diaphragm chamber, while the other chamber gas emissions. Package Content1 x Air-Operated Double Diaphragm Pump
A diaphragm pump (also known as a Membrane pump) is a positive displacement pump that uses a combination of the reciprocating action of a rubber, thermoplastic or teflon diaphragm and suitable valves on either side of the diaphragm (check valve, butterfly valves, flap valves, or any other form of shut-off valves) to pump a fluid.
The listing is about 24 GPM Air-Operated Double Diaphragm Pump with 1 Inch Inlet And Outlet. This powerful air-operated double diaphragm pump operates from 29 to 115 PSI. Features a 1in. inlet and 1in. outlet capable of pumping up to 24 gallons/min at temperatures up to 80 degrees F.
In the pump two symmetrical working chamber each equipped with a diaphragm, the center link will be integrated into one. Compressed air from the pump inlet into the valve, through the valve body to introduce compressed air into one of the chamber to promote movement of the diaphragm chamber, while the other chamber gas emissions.
Once the end of the stroke is reached, the gas distribution mechanism automatically introduces compressed air into the other working chamber to push the diaphragm in the opposite direction so that the two diaphragms move back and forth in unison.
Perfect for use with water. Ideal for use with low viscosity petroleum fluids including diesel, kerosene, motor oil and some waste oil.
