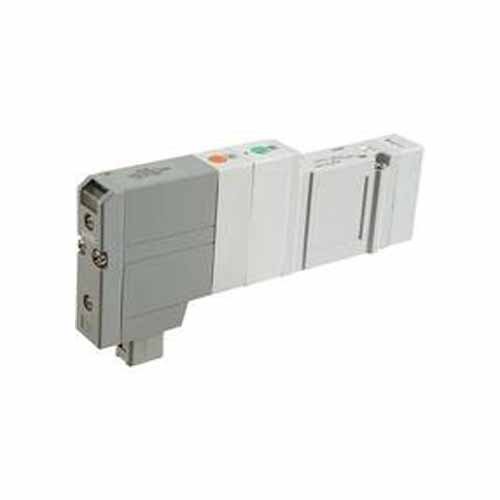

24VDC Solenoid Air Control Valve - High Performance Pneumatic Valve for Industrial Automation, HVAC Systems, and Machinery Control

Product Description

The SV series employs a multi-connector instead of the conventional lead wires for internal manifold wiring. By connecting each block with a connector, changes to manifold stations are greatly simplified. Cassette base type manifolds offer the ultimate in flexibility. Manifold sections can be added using a simple release mechanism. Conventional tie-rod base type manifolds are also available. The use of 34 pin connectors allows up to 16 stations with double solenoids.Fluid: airOperating pressure range: -100kPa to 0.7MPaResponse time ms (at 0.5MPa): 18 or lessCoil rated voltage: 12, 24VDCAmbient and fluid temperature: -10 to 50 CEnclosure: IP67 (based on IEC529)
