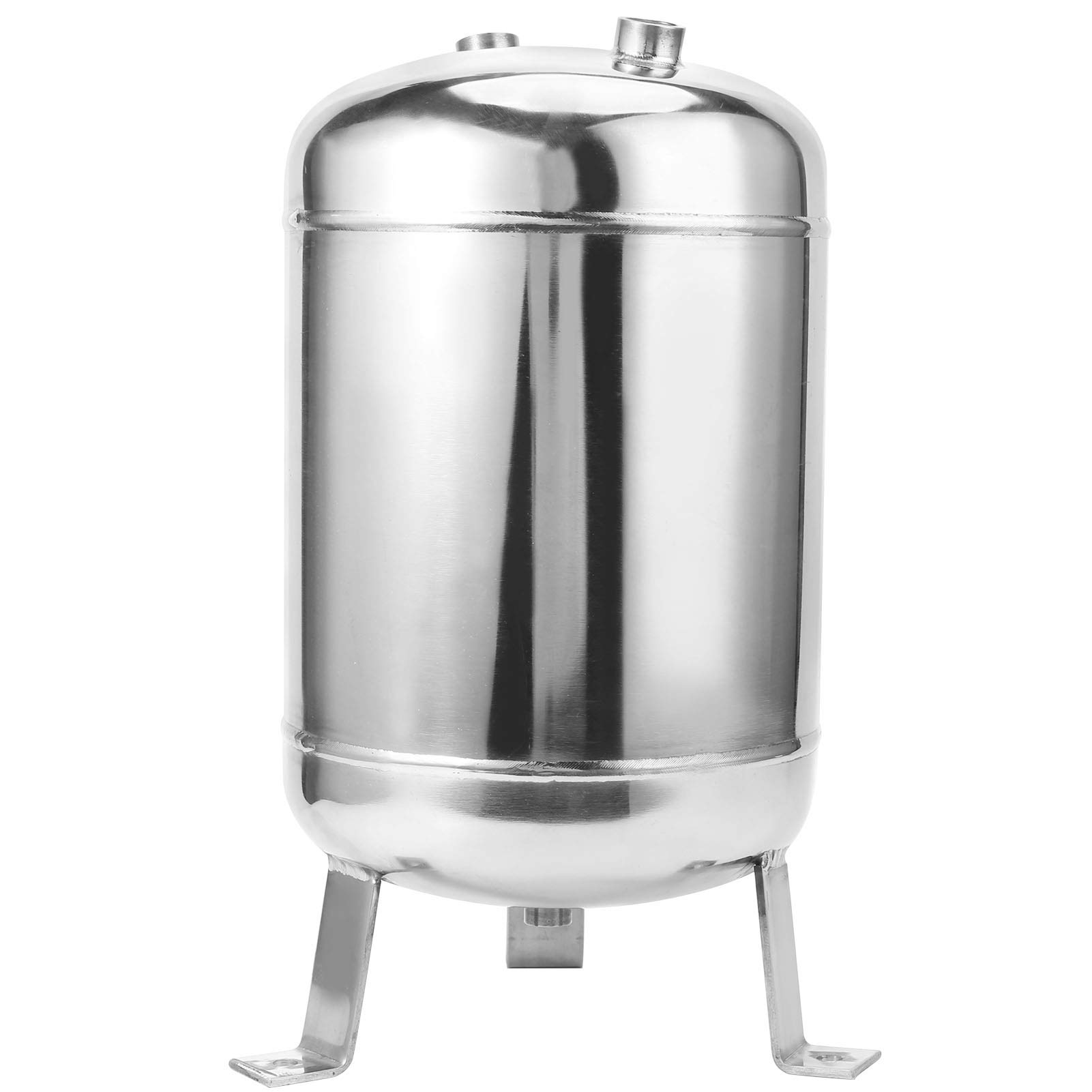

5-Port Air Reservoir Tank with Mirror Finish & Strong Welding - Industrial Air Compressor Accessory for Pneumatic Tools & Production Lines

Product Description

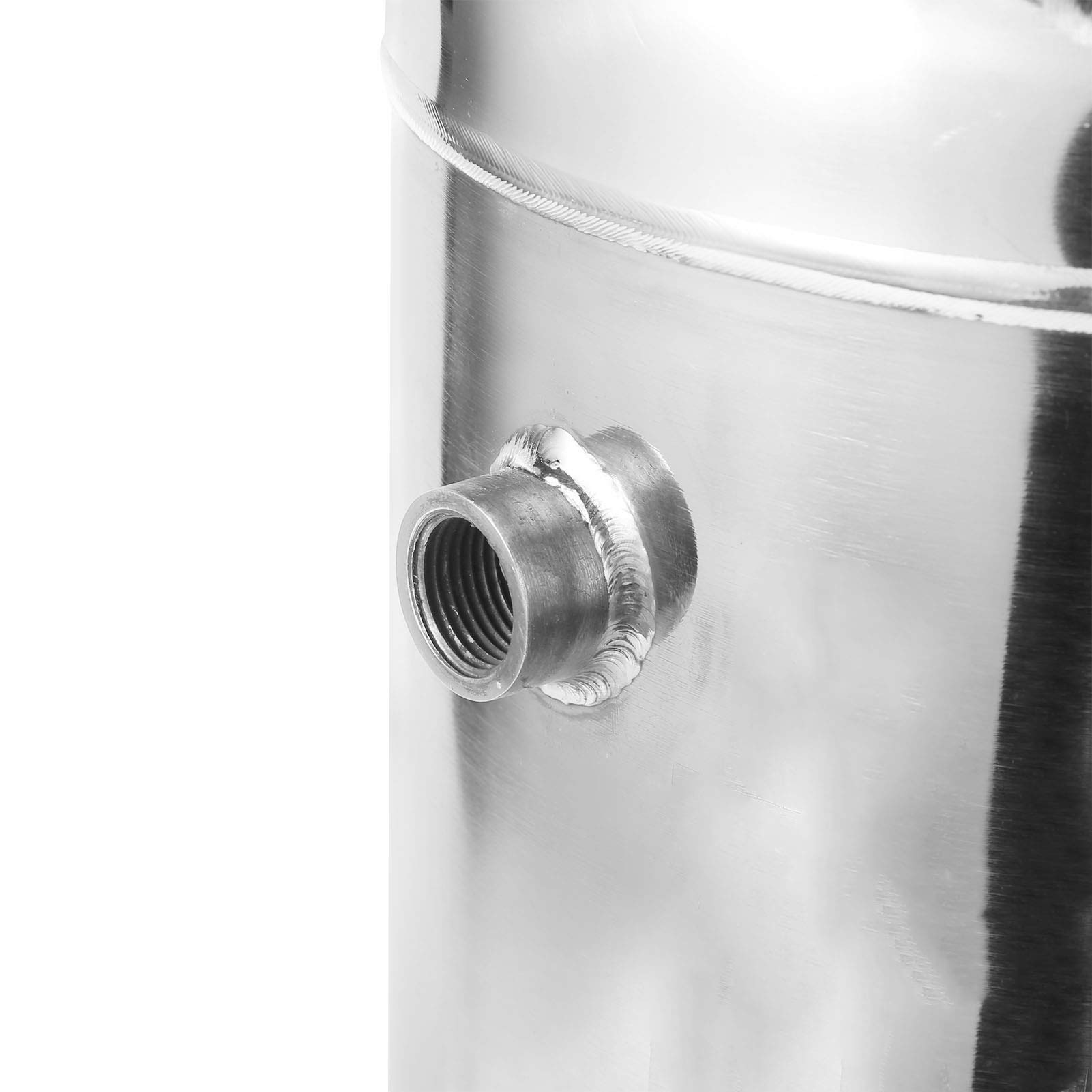

Feature:1. High-quality threaded mouth, accurate opening, strong welding, can hold 10L gas.2. Adopt argon arc welding, great workmanship, beautiful and practical and good performance.3. Careful selection of materials, selection of high-quality 304 plates, strong and , has a long service life.4. Can be used in industrial production, automotive energy storage , vacuum buffer .5. The diameter of the gas is 219mm, the length of the is 345mm, and the height is 410mm.Specification:Item Type: Air Reservoir Color Classification: MirrorMaterial: 304 stainless steelUses: Industrial production, equipment, automotive energy storage , vacuum buffer Capacity: 10LWithstand Pressure: 1.25MPaMedium: Air Diameter: Approx. 219mm / 8.6in Length: Approx. 345mm / 13.6inHeight: Approx. 410mm / 16.1inUpper Through Hole Specification: NPT 1/2in (19.5mm)Head Through Hole Specification: NPT 1/2in (19.5mm)Bottom Through Hole Specification: NPT 1/4in (11.5mm)Instructions for use 1. The working pressure of the gas storage shall not be higher than the maximum working pressure of 1.25MPa, the user shall be responsible for the consequences caused by overpressure use.2. The gas storage is used in conjunction with the connecting parts (trachea joints, plugs, safety valves, pressure gauges, drain valves), and can only work after debugging.3. The use of simple pressure vessels (gas storage ) does not require registration for use, and does not require periodic inspection within the recommended service life. The gas after reaching the recommended service life (7-10 years) should be scrapped.4. The gas storage should be placed on a flat working to avoid cracks in the welded joint between the bracket and the simplified body during the vibration proce
